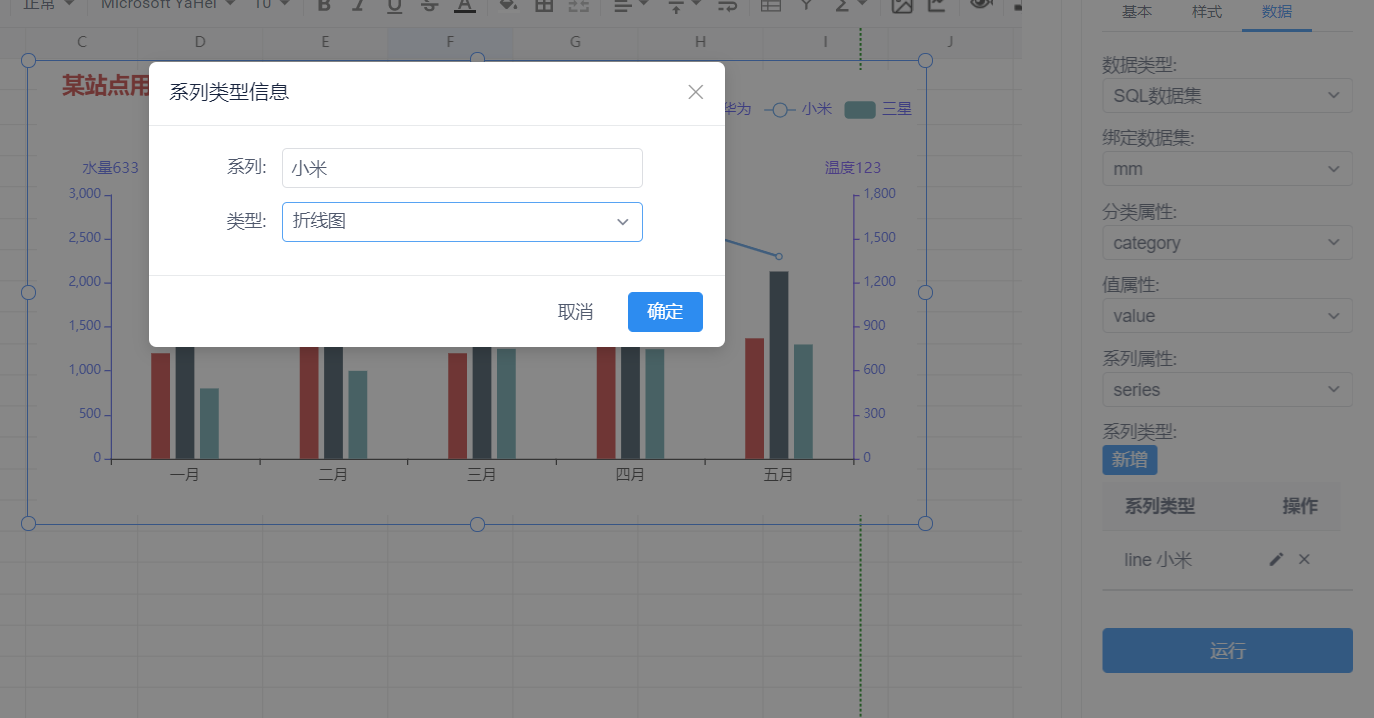

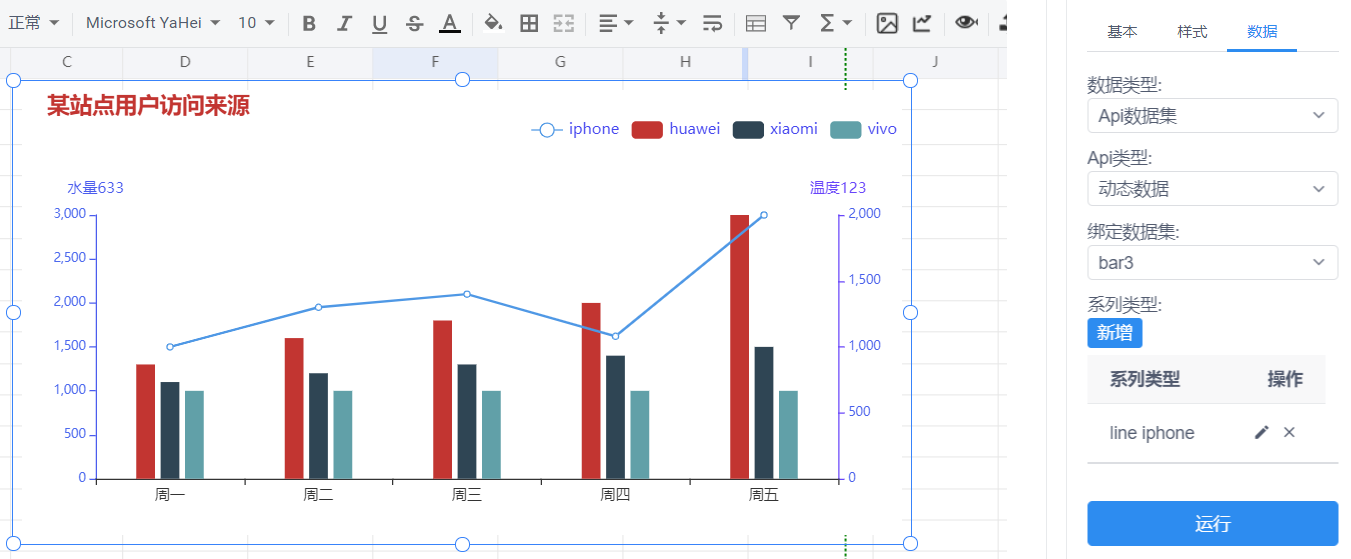

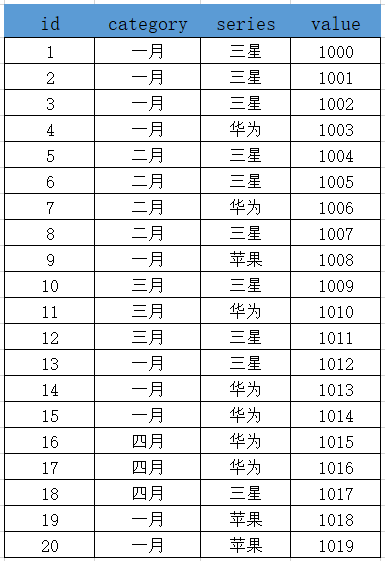

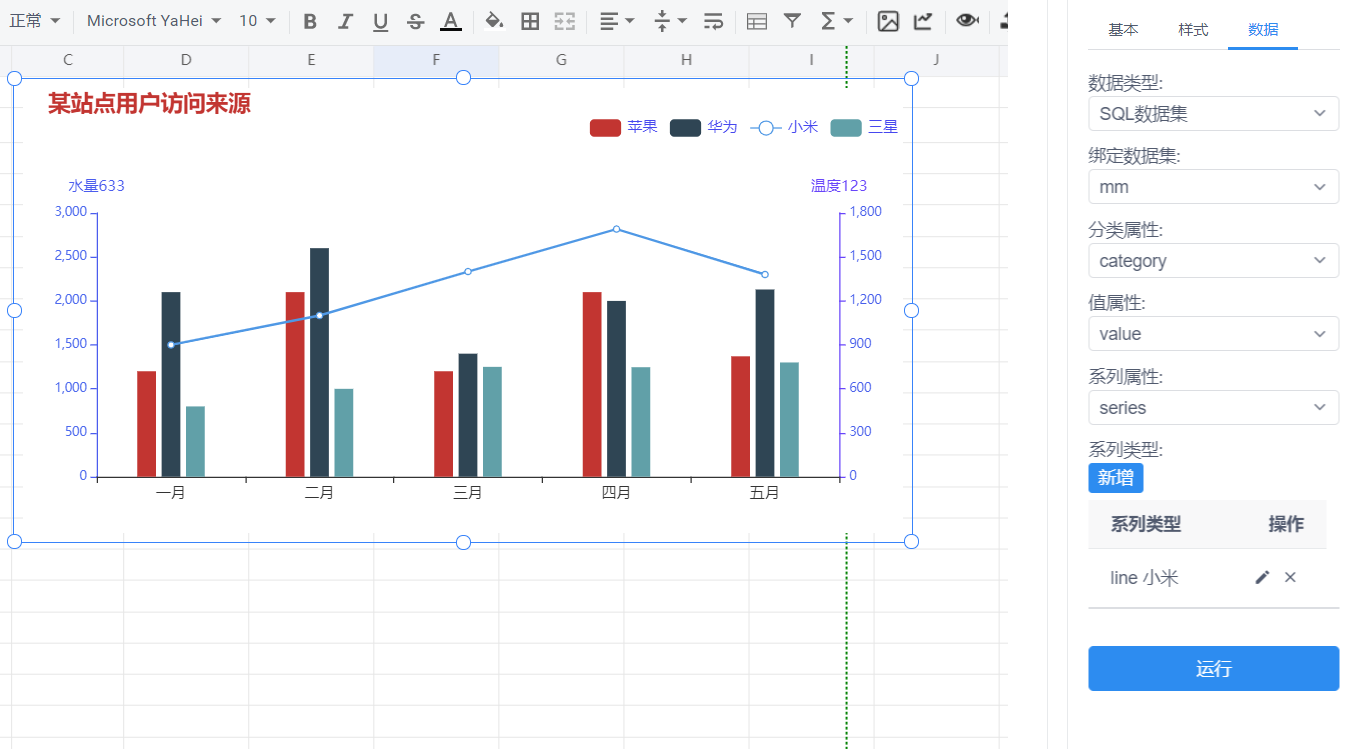

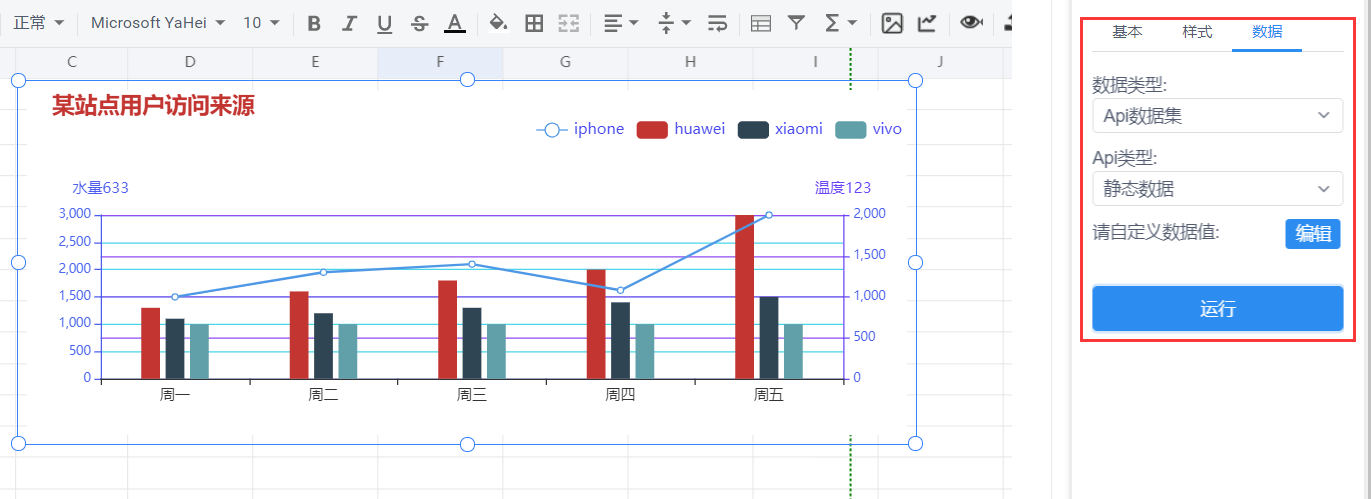

### **折柱图支持3种数据形式:** #### **1. SQL数据** 使用SQL形式,可直接连接数据库,将SQl种的数据筛选并显示在图表上。 点击报表编辑器右侧的操作栏,点击“数据”,选择"数据类型"为“SQL数据集”,按步骤操作即可,下边讲解一下各个参数的意思: * 绑定数据集:是左侧绑定过的数据集,可选择任意一个SQL类型的数据集; * 分类属性:是X轴绑定数据库的字段; * 值属性:是Y轴绑定数据库的字段; * 系列类型:用户数据跟那个系列绑定,比如下图中iPhone、huawei、xiaomi、vivo为系列,让这些系列跟柱子和折线绑定,就知道这些系列对应的是柱子还是折线;如下图中,让“小米”跟“折线图‘绑定,就可知道,折线代表小米,其他的系列表示柱子; ### **数据库配置字段如下:** ![](https://img.kancloud.cn/58/1e/581e73233847e21988f2ff23391959a2_385x561.png) ![](https://img.kancloud.cn/20/7b/207b4217b7b9345fa49a568d0a654262_1374x718.png) ![](https://img.kancloud.cn/3c/dc/3cdc333649d9d3d0d0c0c068d9ef6fd9_804x24.png) ![](https://img.kancloud.cn/c1/c5/c1c55bf8a2798a1ccd17d58f234c3b03_1354x749.png) ![](https://img.kancloud.cn/3c/dc/3cdc333649d9d3d0d0c0c068d9ef6fd9_804x24.png) #### **2. 静态API数据** 报表绑定的数据可以是静态API的形式。 点击报表编辑器右侧的操作栏,点击“数据”,选择"数据类型"为“Api数据集”,“Api类型”选择“静态数据”,点击“数据值”,输入静态类型即可,如: ``` [ {"name":"周一","value":1000,"type":"iphone"}, {"name":"周二","value":1300,"type":"iphone"}, {"name":"周三","value":1400,"type":"iphone"}, {"name":"周四","value":1080,"type":"iphone"}, {"name":"周五","value":2000,"type":"iphone"}, {"name":"周一","value":1300,"type":"huawei"}, {"name":"周二","value":1600,"type":"huawei"}, {"name":"周三","value":1800,"type":"huawei"}, {"name":"周四","value":2000,"type":"huawei"}, {"name":"周五","value":3000,"type":"huawei"}, {"name":"周一","value":1100,"type":"xiaomi"}, {"name":"周二","value":1200,"type":"xiaomi"}, {"name":"周三","value":1300,"type":"xiaomi"}, {"name":"周四","value":1400,"type":"xiaomi"}, {"name":"周五","value":1500,"type":"xiaomi"}, {"name":"周一","value":1000,"type":"vivo"}, {"name":"周二","value":1000,"type":"vivo"}, {"name":"周三","value":1000,"type":"vivo"}, {"name":"周四","value":1000,"type":"vivo"}, {"name":"周五","value":1000,"type":"vivo"} ] ``` 备注:代码格式按上边格式写,才可渲染效果; ![](https://img.kancloud.cn/9c/be/9cbecb75855d9d978a1465040406807f_1371x499.png) ![](https://img.kancloud.cn/3c/dc/3cdc333649d9d3d0d0c0c068d9ef6fd9_804x24.png) #### **3. 动态API数据** 绑定的数据也可以是动态API的形式。 点击报表编辑器右侧的操作栏,点击“数据”,选择"数据类型"为“Api数据集”,“Api类型”选择“动态数据”,选择“绑定数据集”,点击“运行”,就可以将数据渲染过来。 **名词解释:** 系列类型:用户数据跟那个系列绑定,比如下图中iPhone、huawei、xiaomi、vivo为系列,让这些系列跟柱子和折线绑定,就知道这些系列对应的是柱子还是折线; 如下图中,让“iPhone”跟“折线图‘绑定,就可知道,折线代表iPhone,其他的系列表示柱子; ![](https://img.kancloud.cn/e8/17/e8179c13f1af07fb147c588159f8bc76_1385x579.png) ![](https://img.kancloud.cn/3c/dc/3cdc333649d9d3d0d0c0c068d9ef6fd9_804x24.png) 代码如: ``` { "data": [ { "name": "周一", "value": 1000, "type": "iphone" }, { "name": "周二", "value": 1300, "type": "iphone" }, { "name": "周三", "value": 1400, "type": "iphone" }, { "name": "周四", "value": 1080, "type": "iphone" }, { "name": "周五", "value": 2000, "type": "iphone" }, { "name": "周一", "value": 1300, "type": "huawei" }, { "name": "周二", "value": 1600, "type": "huawei" }, { "name": "周三", "value": 1800, "type": "huawei" }, { "name": "周四", "value": 2000, "type": "huawei" }, { "name": "周五", "value": 3000, "type": "huawei" }, { "name": "周一", "value": 1100, "type": "xiaomi" }, { "name": "周二", "value": 1200, "type": "xiaomi" }, { "name": "周三", "value": 1300, "type": "xiaomi" }, { "name": "周四", "value": 1400, "type": "xiaomi" }, { "name": "周五", "value": 1500, "type": "xiaomi" }, { "name": "周一", "value": 1000, "type": "vivo" }, { "name": "周二", "value": 1000, "type": "vivo" }, { "name": "周三", "value": 1000, "type": "vivo" }, { "name": "周四", "value": 1000, "type": "vivo" }, { "name": "周五", "value": 1000, "type": "vivo" } ] } ``` 备注:代码格式按上边格式写,才可渲染效果; ![](https://img.kancloud.cn/00/40/0040d4148e5bd2b57243a2ff288ded25_1351x559.png)
