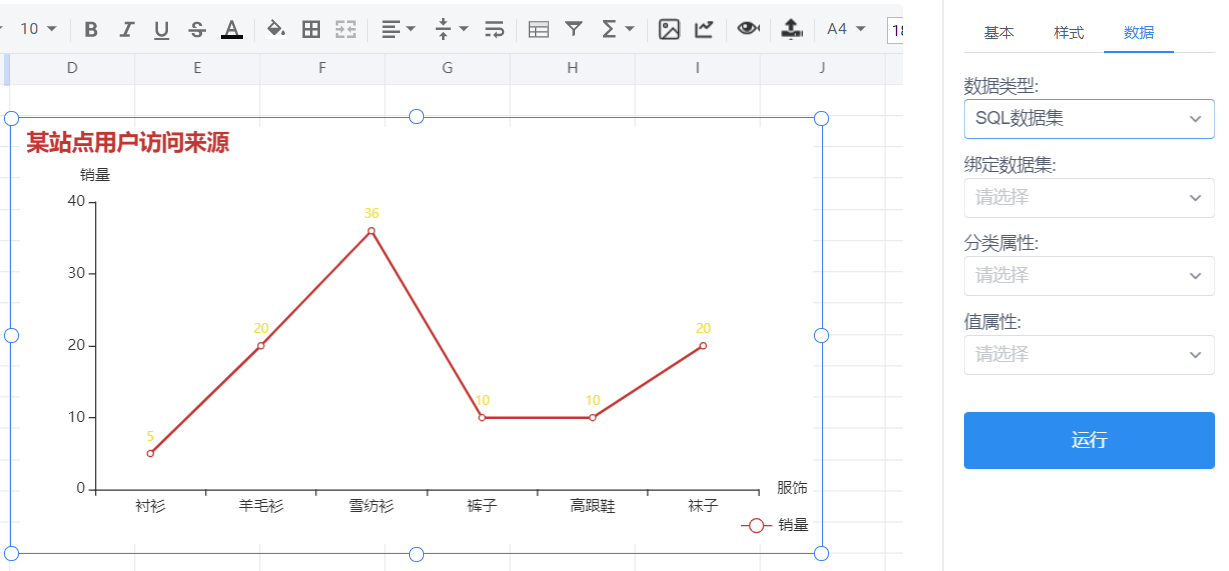

### **支持:多数据对比折线图** ![](https://img.kancloud.cn/3c/dc/3cdc333649d9d3d0d0c0c068d9ef6fd9_804x24.png) #### **1. SQL数据** 使用SQL形式,可直接连接数据库,将SQl种的数据筛选并显示在图表上。 点击报表编辑器右侧的操作栏,点击“数据”,选择"数据类型"为“SQL数据集”,按步骤操作即可,下边讲解一下各个参数的意思: * 绑定数据集:是左侧绑定过的数据集,可选择任意一个SQL类型的数据集; * 分类属性:是X轴绑定数据库的字段; * 值属性:是Y轴绑定数据库的字段; * 系列属性:对应的是线的类型; ### **数据库配置字段如下:** ![](https://img.kancloud.cn/58/1e/581e73233847e21988f2ff23391959a2_385x561.png) ![](https://img.kancloud.cn/ca/07/ca0735762e7ea52050e0969ee2593b43_1229x571.png) ![](https://img.kancloud.cn/3c/dc/3cdc333649d9d3d0d0c0c068d9ef6fd9_804x24.png) #### **2. 静态API数据** 报表绑定的数据可以是静态API的形式。 点击报表编辑器右侧的操作栏,点击“数据”,选择"数据类型"为“Api数据集”,“Api类型”选择“静态数据”,点击“数据值”,输入静态类型即可,如: ``` [ {"name":"周一","value":1000,"type":"iphone"}, {"name":"周二","value":1300,"type":"iphone"}, {"name":"周三","value":1400,"type":"iphone"}, {"name":"周四","value":1080,"type":"iphone"}, {"name":"周五","value":2000,"type":"iphone"}, {"name":"周一","value":1300,"type":"huawei"}, {"name":"周二","value":1600,"type":"huawei"}, {"name":"周三","value":1800,"type":"huawei"}, {"name":"周四","value":2000,"type":"huawei"}, {"name":"周五","value":3000,"type":"huawei"}, {"name":"周一","value":1100,"type":"xiaomi"}, {"name":"周二","value":1200,"type":"xiaomi"}, {"name":"周三","value":1300,"type":"xiaomi"}, {"name":"周四","value":1400,"type":"xiaomi"}, {"name":"周五","value":1500,"type":"xiaomi"}, {"name":"周一","value":1000,"type":"vivo"}, {"name":"周二","value":1000,"type":"vivo"}, {"name":"周三","value":1000,"type":"vivo"}, {"name":"周四","value":1000,"type":"vivo"}, {"name":"周五","value":1000,"type":"vivo"} ] ``` 备注:代码格式按上边格式写,才可渲染效果; ![](https://img.kancloud.cn/68/ba/68ba9590e4cdddbc8a21b5a892769092_1323x530.png) ![](https://img.kancloud.cn/3c/dc/3cdc333649d9d3d0d0c0c068d9ef6fd9_804x24.png) #### **3. 动态API数据** 绑定的数据也可以是动态API的形式。 点击报表编辑器右侧的操作栏,点击“数据”,选择"数据类型"为“Api数据集”,“Api类型”选择“动态数据”,选择“绑定数据集”,点击“运行”,就可以将数据渲染过来,代码如: ``` { "data": [ { "name": "周一", "value": 1000, "type": "iphone" }, { "name": "周二", "value": 1300, "type": "iphone" }, { "name": "周三", "value": 1400, "type": "iphone" }, { "name": "周四", "value": 1080, "type": "iphone" }, { "name": "周五", "value": 2000, "type": "iphone" }, { "name": "周一", "value": 1300, "type": "huawei" }, { "name": "周二", "value": 1600, "type": "huawei" }, { "name": "周三", "value": 1800, "type": "huawei" }, { "name": "周四", "value": 2000, "type": "huawei" }, { "name": "周五", "value": 3000, "type": "huawei" }, { "name": "周一", "value": 1100, "type": "xiaomi" }, { "name": "周二", "value": 1200, "type": "xiaomi" }, { "name": "周三", "value": 1300, "type": "xiaomi" }, { "name": "周四", "value": 1400, "type": "xiaomi" }, { "name": "周五", "value": 1500, "type": "xiaomi" }, { "name": "周一", "value": 1000, "type": "vivo" }, { "name": "周二", "value": 1000, "type": "vivo" }, { "name": "周三", "value": 1000, "type": "vivo" }, { "name": "周四", "value": 1000, "type": "vivo" }, { "name": "周五", "value": 1000, "type": "vivo" } ] } ``` 备注:代码格式按上边格式写,才可渲染效果; ![](https://img.kancloud.cn/9e/78/9e78afa0ab0922ca6ed8e375e4ef1fe8_1319x527.png) ![](https://img.kancloud.cn/3c/dc/3cdc333649d9d3d0d0c0c068d9ef6fd9_804x24.png)
